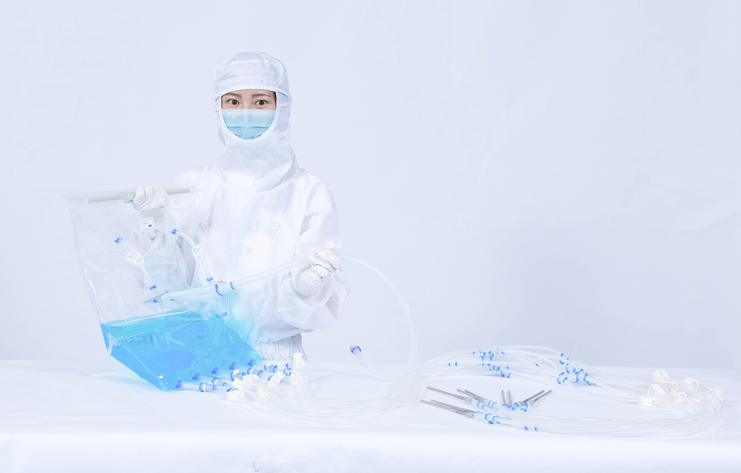

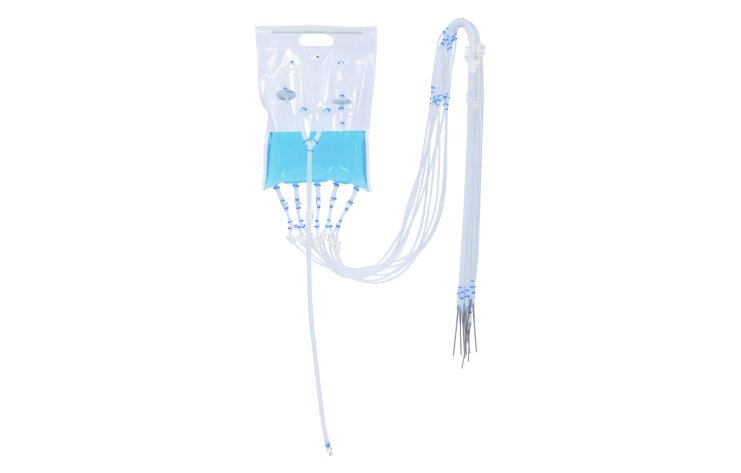

Single-use Filling Bag
single-use filling bag is a single-use filling unit which is pre verified, pre installed and pre sterilized. It is composed of single-use liquid storage container, single-use bag filter, filling pipeline, single-use sterile connector, disconnector and single-use filling needle. The use of single-use filling system can increase the effective production time and shorten the downtime of filling machine and related equipment. < br / > le-fill single-use filling bag adopts multilayer coextrusion film, which ensures extremely low gas permeability, g
Inquiry now
Features
Typical application
Technical parameter
Related documents
•High transparency film material is helpful to judge the auxiliary process
•The components are pre washed to eliminate visible foreign matters or particles and reduce the level of insoluble particles
•Cutting, welding and assembling are all in C+A environment
•Flexible custom filling needle, suitable for different brands of filling machine
•Carefully designed liquid pipeline to ensure the filling accuracy
| Product data | |
|---|---|
| Specification | 1-50 L，special specifications customizable |
| Operating temperature | -45℃~45℃ |
| Sterilization method | Gamma ray irradiation sterilization (25-40 kGy) |
| Packaging form | Double-layer PE bag vacuum packaging |
| Membrane material information | |
|---|---|
| Structure | LDPE/EVOH/ULDPE (liquid contact layer) |
| Thickness | 0.325 mm |
| Compliance | ISO 10993-4：Hemolysis ISO 10993-5：Cytotoxicity ISO 10993-6：Implantation test ISO 10993-10：Irritation and Sensitization tests ISO 10993-11：Acute Systemic Toxicity test USP<85>：Bacterial Endotoxins-LAL test USP<88>：Biological reactivity testing, in vivo, class VI USP<661>：Plastic Containers European Pharmacopoeia tests, Ch.3.1.5 ADCF |
| Packaging form | Double-layer PE bag vacuum packaging |
