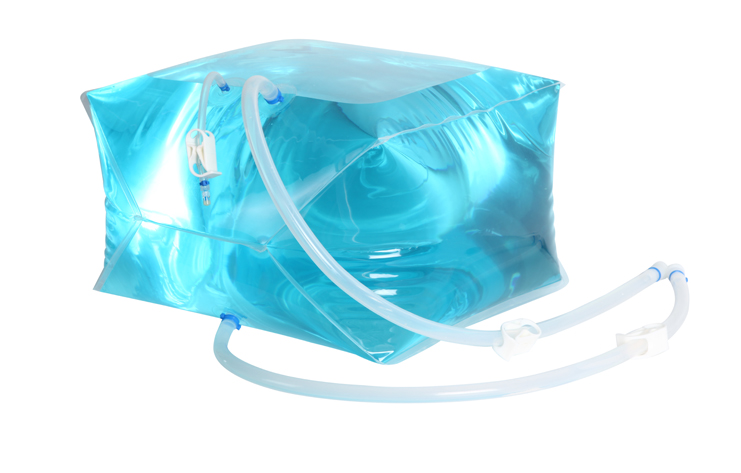

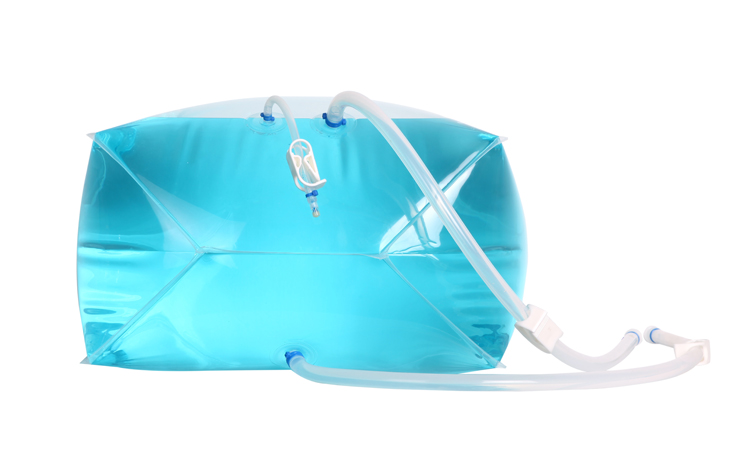

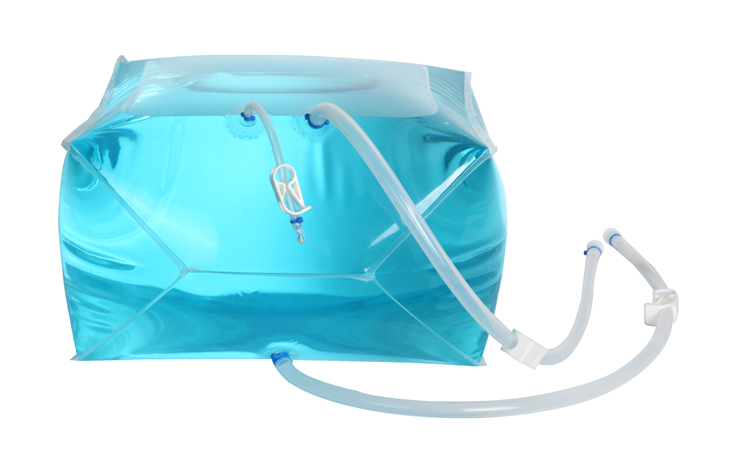

3D Stoage Bag
"The multi-layer co-extrusion film used for the 3D square bags minimize gas permeability, with good physical strength, excellent chemical compatibility and biocompatibility of the aseptic storage bags, so that it can be safely used for the storage and transport of various biopharmaceutical liquids.The standard 3D square storage bags are available in various types and specifications from 50 L to 3000 L and can be used independently for storage of buffer, medium, intermediate or drug substance, or used with a sterilizing filter. Luer connectors,
Inquiry now
Features
Typical application
Technical parameter
Ordering Information
Related documents
•Good physical strength, chemical compatibility and biological compatibility of membrane material
•High-transparency membrane material, conducive to auxiliary process judgment
•Meet the storage and transport needs of various solutions in the biopharmaceutical process
•Flexible customization of sizes and tubing for various processes
| Product data | |
|---|---|
| Specification | 50-3000 L，special specifications customizable |
| Operating temperature | -45℃~45℃ |
| Sterilization method | Gamma ray irradiation sterilization (25-40 kGy) |
| Packaging form | Double-layer PE bag vacuum packaging |
| Membrane material information | |
|---|---|
| Structure | LDPE/EVOH/ULDPE (liquid contact layer) |
| Thickness | 0.325 mm |
| Compliance | ISO 10993-4：Hemolysis ISO 10993-5：Cytotoxicity ISO 10993-6：Implantation test ISO 10993-10：Irritation and Sensitization tests ISO 10993-11：Acute Systemic Toxicity test USP<85>：Bacterial Endotoxins-LAL test USP<88>：Biological reactivity testing, in vivo, class VI USP<661>：Plastic Containers European Pharmacopoeia tests, Ch.3.1.5 ADCF |
| Packaging form | Double-layer PE bag vacuum packaging |
Ordering information
FD 2R series
| Product No. | Volume (L) | Top tubing | Bottom tubing | Sampling port |
|---|---|---|---|---|
| FD250-2R | 250 L | 1/2"×3/4",Silicone tubing 50 cm, TC25 quick connector | 1/2"×3/4",Silicone tubing 50 cm, TC25 quick connector | NA |
Note: The product number of same series 500 L and 1000 L is FD500-2R and FD1000-2R.
FD 3R series
| Product No. | Volume (L) | Top tubing | Bottom tubing | Sampling port |
|---|---|---|---|---|
| FD250-3R | 250 L | 1/2"×3/4",C-Flex tubing 50 cm, end tube stopper | 1/2"×3/4",C-Flex tubing 50 cm, end tube stopper | NA |
Note: The product number of same series 500 L and 1000 L is FD500-3R and FD1000-3R.
FD 4R series
| Product No. | Volume (L) | Top tubing | Bottom tubing | Sampling port |
|---|---|---|---|---|
| FD250-4R | 250 L | 3/8"×5/8",Silicone tubing 100 cm,3/8"×5/8",C-Flex tubing 50 cm, end tube stopper | 3/8"×5/8",Silicone tubing 100 cm,3/8"×5/8",C-Flex tubing 50 cm, end tube stopper | 1/4"×3/8",Silicone tubing 6 cm,1/4"×3/8",C-Flex tubing 50 cm, end tube stopper |
Note: The product number of same series 500 L and 1000 L is FD500-4R and FD1000-4R. The top and bottom tubing are 1/2"×3/4” silicone tubing.
FD 5R series
| Product No. | Volume (L) | Top tubing | Bottom tubing | Sampling port |
|---|---|---|---|---|
| FD250-5R | 250 L | 3/8"×5/8",Silicone tubing 150 cm, TC25 quick connector | 3/8"×5/8",Silicone tubing 150 cm, TC25 quick connector | 1/4"×3/8",silicone tubing 20 cm, female Luer sampling port |
Note: The product number of same series 500 L and 1000 L is FD500-5R and FD1000-5R. The top and bottom tubing are 1/2"×3/4” silicone tubing.
FD 6R series
| Product No. | Volume (L) | Top tubing | Bottom tubing | Sampling port |
|---|---|---|---|---|
| FD250-6R | 250 L | 3/8"×5/8",silicone tubing 100 cm, 3/8"×5/8",C-Flex tubing 50 cm, CPC male quick connector + female cap | 3/8"×5/8",silicone tubing 100 cm, 3/8"×5/8",C-Flex tubing 50 cm, CPC male quick connector + female cap | 1/4"×3/8",silicone tubing 6 cm, 1/4"×3/8",C-Flex tubing 50 cm, needleless sampler port |
Note: The product number of series 500 L and 1000 L is FD500-6R and FD1000-6R. The top and bottom tubing are 1/2"×3/4” silicone tubing.
