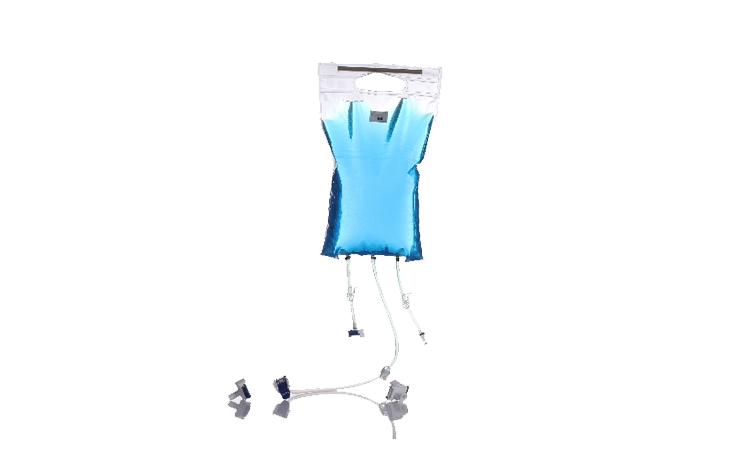

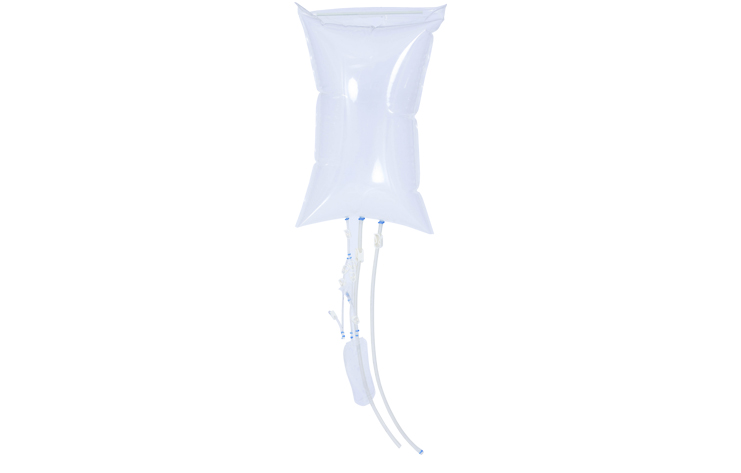

2D Storage Bag

The multi-layer co-extrusion film used for the 2D storage bags minimize gas permeability, with good physical strength, wide chemical compatibility and biocompatibility of the aseptic storage bags, so that it is safely used for the storage and transportation of various biopharmaceutical liquids.Standard 2D storage bags have S series of specification 1 L-50 L and H series of specification 5 ML-3 L.

1

50 L

SB系列

5 mL

3 L

H系列

Inquiry now

Features

Typical application

Technical parameter

Ordering Information

Related documents

•Good physical strength, chemical compatibility and biological compatibility of membrane material

•High-transparency membrane material, conducive to auxiliary process judgment

•Meet the storage and transport needs of various solutions in the biopharmaceutical process

•Flexible customization of sizes and tubing for various processes

•Storage and transport of small-scale buffer and media

•Purified component collection

•Sample collection

•Temporary storage and transportation of bulk intermediates

•Appropriate liquid-liquid mixing process

•Collection, store and transport of drug substance

•Transportation of end products
Product data
SpecificationS series 1 L-50 L and H series 5 mL-3 L, special specifications customizabl
Operating temperature-80℃~45℃
Sterilization methodGamma ray irradiation sterilization (25-40 kGy)
Packaging formDouble-layer PE bag vacuum packaging
Membrane material information
StructureLDPE/EVOH/ULDPE（liquid contact layer）
Thickness0.325 mm
ComplianceISO 10993-4：Hemolysis
ISO 10993-5：Cytotoxicity
ISO 10993-6：Implantation test
ISO 10993-10：Irritation and Sensitization tests
ISO 10993-11：Acute Systemic Toxicity test
USP<85>：Bacterial Endotoxins-LAL test
USP<88>：Biological reactivity testing, in vivo, class VI 应
USP<661>：Plastic Containers European Pharmacopoeia tests,
Ch.3.1.5
ADCF

H series miniature storage bags

HA 1AR series

Product No.VolumeTubing configuration
HA0005-1AR5 mL6.8*8.8 mm female Luer sampling port

Note: The product number of same series 250 mL, 500 mL, 1 L, 2 L and 3 L is: HA0250-1AR, HA0500-1AR, HA001-1AR, HA002-1AR and HA003-1AR.

HB 2AR series

Product No.VolumeTubing configuration
HB0050-2AR50 mLTubing 1: 1/8"× 1/4" silicone tubing 15 cm, female Luer connector
Tubing 2: 1/8"× 1/4" silicone tubing 15 cm, female Luer connector

Note: The product number of same series 100 mL, 250 mL, 500 mL, 1 L, 2 L and 3 L is: HB0100-2AR, HB0250-2AR, HB0500-2AR, HB001-2AR, HB002-2AR and HB003-2AR.

HB 2BR series

Product No.VolumeTubing configuration
HB0050-2BR50 mLTubing 1: 1/8"× 1/4" silicone tubing 15 cm, male Luer connector
Tubing 2: 1/8"× 1/4" silicone tubing 15 cm, male Luer connector

Note: The product number of same series 100 mL, 250 mL, 500 mL, 1 L, 2 L and 3 L is: HB0100-2BR, HB0250-2BR, HB0500-2BR, HB001-2BR, HB002-2BR and HB003-2BR.

HB 2CR series

Product No. Volume Tubing configuration
HB0050-2CR 50 mL Tubing 1: 1/8"×1/4" C-Flex 30 cm, end tube stopper
Tubing 2: 1/8"×1/4" C-Flex 30 cm, end tube stopper

Note: The product number of same series 100 mL, 250 mL, 500 mL, 1 L, 2 L and 3 L is: HB0100-2CR, HB0250-2CR, HB0500-2CR, HB001-2CR, HB002-2CR and HB003-2CR.

HC 3AR series

Product No.VolumeTubing configuration
HC0250-3AR250 mLTubing 1: 1/8"× 1/4” silicone tubing 30 cm, CPC male quick connector + female cap
Tubing 2: 1/8"×1/4” silicone tubing 30 cm, CPC female quick connector + male cap
Tubing 3: 1/8"× 1/4” silicone tubing 15 cm, female Luer sampling port

Note: The product number of same series 500 mL, 1 L, 2 L and 3 L is: HC0500-3AR, HC001-3AR, HC002-3AR and HC003-3AR.

HC 3BR series

Product No.VolumeTubing configuration
HC0250-3BR250 mLTubing 1: 1/4"× 3/8” silicone tubing 30 cm, CPC male quick connector + female cap
Tubing 2: 1/4"×3/8” silicone tubing 30 cm, CPC female quick connector + male cap
Tubing 3: 1/4"× 3/8” silicone tubing 15 cm, female Luer sampling port

Note: The product number of same series 500 mL, 1 L, 2 L and 3 L is: HC0500-3BR, HC001-3BR, HC002-3BR and HC003-3BR.

HC 3CR series

Product No.VolumeTubing configuration
HC0250-3CR250 mLTubing 1: 1/8"× 1/4” silicone tubing 30 cm, CPC male quick connector + female cap
Tubing 2: 1/8"×1/4” silicone tubing 30 cm, CPC female quick connector + male cap
Tubing 3: 1/8"× 1/4” silicone tubing 15 cm, needleless sampler port

Note: The product number of same series 500 mL, 1 L, 2 L and 3 L is: HC0500-3CR, HC001-3CR, HC002-3CR and HC003-3CR.

HC 3DR series

Product No.VolumeTubing configuration
HC0250-3DR250 mLTubing 1: 1/8"× 1/4” silicone tubing 30 cm, CPC male quick connector + female cap
Tubing 2: 1/8"×1/4” silicone tubing 30 cm, CPC female quick connector + male cap
Tubing 3: 1/8"× 1/4” silicone tubing 15 cm, needleless sampler port

Note: The product number of same series 500 mL, 1 L, 2 L and 3 L is: HC0500-3DR, HC001-3DR, HC002-3DR and HC003-3DR.

HC 3ER series

Product No.VolumeTubing configuration
HC0250-3ER250 mLTubing 1: 1/8"×1/4" C-Flex 30 cm, end tube stopper
Tubing 2: 1/8"×1/4" C-Flex 30 cm, end tube stopper
Tubing 3: 1/8"× 1/4” silicone tubing 15 cm, needleless sampler port

Note: The product number of same series 500 mL, 1 L, 2 L and 3 L is: HC0500-3ER, HC001-3ER, HC002-3ER and HC003-3ER.

HC 3FR series

Product No.VolumeTubing configuration
HC0250-3FR250 mLTubing 1: 1/4"×3/8" C-Flex 30 cm, end tube stopper
Tubing 2: 1/4"×3/8" C-Flex 30 cm, end tube stopper
Tubing 3: 1/4"× 3/8” silicone tubing 15 cm, needleless sampler port

Note: The product number of same series 500 mL, 1 L, 2 L and 3 L is: HC0500-3FR, HC001-3FR, HC002-3FR and HC003-3FR.

SB series storage bags

SB storage bags 2R series

Product No.Volume (L)Tubing configuration
SB001-2R1LTubing 1: 1/4"×3/8” silicone tubing 20 cm, TC25 quick connector
Tubing 1: 1/4"×3/8” silicone tubing 20 cm, heparin cap sampling port

Note: The product number of same series 2 L, 3 L, 5 L, 10 L, 20 L, 30 L and 50 L is SB002-2R, SB003-2R, SB005-2R, SB010-2R, SB020-2R, SB030-2R and SB050-2R

SB storage bags 3R series

Product No.Volume (L)Tubing configuration
SB001-3R1LTubing 1: 1/4"×3/8” silicone tubing 6 cm+1/8"×1/4" C-Flex 40 cm, end tube stopper
Tubing 2: 1/4"×3/8” silicone tubing 6 cm+1/8"×1/4" C-Flex 40 cm, end tube stopper

Note: The product number of same series 2 L, 3 L, 5 L, 10 L, 20 L, 30 L and 50 L is SB002-3R, SB003-3R, SB005-3R, SB010-3R, SB020-3R, SB030-3R and SB050-3R, in which, 5 L tubing 1 and 2 are 1/4"×7/16" C-Flex, and 10-50 L tubing 1 and 2 are 3/8"×5/8" C-Flex.

SB storage bags 4R series

Product No.Volume (L)Tubing configuration
SB001-4R2LTubing 1: 1/4"×3/8” silicone tubing 50 cm, CPC female quick connector + male cap
Tubing 2: 1/4"× 3/8” silicone tubing 50 cm, CPC male quick connector + female cap
Tubing 3: 1/4"× 3/8” silicone tubing 30 cm, female Luer sampling port

Note: The product number of same series 3 L, 5 L, 10 L, 20 L, 30 L and 50 L is: SB003-4R, SB005-4R, SB010-4R, SB020-4R, SB030-4R and SB050-4R, in which, 5-50 L tubing 1 and 2 are 3/8"×5/8” silicone tubing.

SB storage bags 5R series

Product No.Volume (L)Tubing configuration
SB002-5R2LTubing 1: 1/4"×3/8" C-Flex 40 cm, CPC female quick connector + male cap
Tubing 2: 1/4"×3/8" C-Flex 40 cm, CPC male quick connector + female cap
Tubing 3: 1/4"× 3/8” silicone tubing 20 cm, needleless sampler sampling port

Note: The product number of same series 3 L, 5 L, 10 L, 20 L, 30 L and 50 L is: SB003-5R, SB005-5R, SB010-5R, SB020-5R, SB030-5R and SB050-5R, in which, 5-50 L tubing 1 and 2 are 3/8"×5/8" C-Flex.

SB storage bags 6R series

Product No.Volume (L)Tubing configuration
SB005-6R5LTubing 1: 3/8"×5/8" C-Flex 50 cm, end tube stopper
Tubing 2: 3/8"×5/8" C-Flex 50 cm, end tube stopper
Tubing 3: 1/4"×3/8” silicone tubing 6 cm+1/8"×1/4" C-Flex 50 cm, end tube stopper

Note: The product number of same series 10 L, 20 L, 30 L and 50 L is SB010-6R, SB020-6R, SB030-6R and SB050-6R.

SB storage bags 7R series

Product No.Volume (L)Tubing configuration
SB002-7R2LTubing 1: 1/4"×3/8” silicone tubing 50 cm, TC25 quick connector
Tubing 2: 1/4"×3/8” silicone tubing 50 cm, TC25 quick connector
Tubing 3: 1/4"× 3/8” silicone tubing 20 cm, female Luer sampling port

Note: The product number of same series 3 L, 5 L, 10 L, 20 L, 30 L and 50 L is: SB003-7R, SB005-7R, SB010-7R, SB020-7R, SB030-7R and SB050-7R, in which, 5-50 L tubing 1 and 2 are 3/8"×5/8” silicone tubing.

SB storage bags 8R series

Product No.Volume (L)Tubing configuration
SB002-8R2LTubing 1: 1/4"× 3/8” silicone tubing 50 cm, CPC male quick connector + female cap
Tubing 2: 1/4"× 3/8” silicone tubing 50 cm, CPC male quick connector + female cap
Tubing 3: 1/4"× 3/8” silicone tubing 20 cm, female Luer sampling port

注：同类3 L、5 L、10 L、20 L、30 L、50 L的产品编号为： SB003-8R、SB005-8R、SB010-8R、SB020-8R、SB030-8R、SB050-8R，其中5-50 L的管路1和2为3/8"×5/8"硅胶管。Note: The product number of same series 3 L, 5 L, 10 L, 20 L, 30 L and 50 L is: SB003-8R, SB005-8R, SB010-8R, SB020-8R, SB030-8R and SB050-8R, in which, 5-50 L tubing 1 and 2 are 3/8"×5/8” silicone tubing.

SB storage bags 9R series

Product No. Volume (L) Tubing configuration
SB001-9R 1L Tubing 1: 1/4"×7/16" C-Flex 50 cm, end tube stopper
Tubing 2: 1/4"×7/16" C-Flex 50 cm, end tube stopper
Tubing 3: 1/4"×3/8” silicone tubing 6 cm+1/8"×1/4" C-Flex 50 cm, needleless sampler port

Note: The product number of same series 2 L, 3 L, 5 L, 10 L, 20 L, 30 L and 50 L is SB002-9R, SB003-9R, SB005-9R, SB010-9R, SB020-9R, SB030-9R and SB050-9R, in which, 5-50 L tubing 1 and 2 are 1/4"×7/16" C-Flex, and 10-50 L tubing 1 and 2 are 3/8"×5/8" C-Flex.
